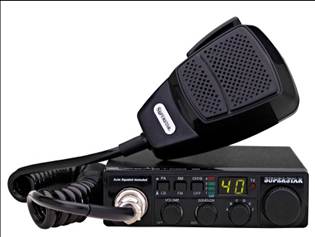

SUPER STAR 3
|
|
|
Features
- 240 Channel
- 4 LED Meter for Signal Strength and Power Output
- Noise Blanker
- Automatic Noise Limiter
- Auto Squelch
- PA Capability
- 5 Watts FM /AM power
|
|
Specification
|
|
General
|
|
|
|
|
|
|
Frequency Range
|
26.065 ~ 28.755MHz
|
|
|
|
|
|
|
|
|
|
|
|
Emission
|
AM/FM
|
|
Frequency Control
|
Phase-Lock-Loop(PLL)
Synthesizer
|
|
Frequency Stability
|
0.001%
|
|
Operating Temperature
Range
|
-20 °C ~ +50 °C
|
|
Power Source
|
13.8 VDC
|
|
Antenna Impedance
|
50 Ohms
|
|
Antenna Connectors
|
Standard SO-239 type
|
|
Dimensions
|
120(D)x190(W)x31(H)mm
|
|
Weight
|
1kg
|
|
|
|
|
Transmitter
|
|
|
RF Power Output
|
FM: 5W, AM: 5W
|
|
|
|
|
|
|
Spurious Emission
|
-50 dB
|
|
Audio Distortion
|
<10 %
|
|
Frequency Response
|
300 to 2500 Hz
|
|
Microphone
|
Dynamic Mic
|
|
|
|
|
Receiver
|
|
|
Sensitivity
|
AM: 1uV for 10dB Sinad
|
|
|
FM: 0.5uV for 20dB Sinad
|
|
Squelch Sensitivity
|
<0.5uV
|
|
Image Rejection
|
More than 50 dB
|
|
Audio Power Output
|
3W @ 10% Distortion
|
|
Audio Response
|
300 to 2500Hz
|
|
|
|
|
(All stated specifications are
subject to change without prior notice or obligation.)
|
|
