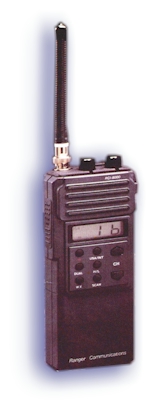

Ranger RCI-8000 |
|
|
Features
- All US/International channels
- 10 Weather channels
- Switchable 5 watt/1watt
- All channel scan
- Dual watch mode
- Instant channel 16 access
- Backlit LCD display
- Removable/rechargeable battery pack
- Time-Out-Timer
Accessories
- Speaker microphone
- Desktop charger
- Replacement antenna
- Replacement battery pack
|
Specification |
|
General |
|
|
Frequency Range |
TX 156.025 to 157.425 MHz |
|
|
RX 156.025 to 163.275 MHz |
|
Number of Channels |
TX 54 USA/INT |
|
|
RX 67 (10 Weather) |
|
Channel Spacing |
25 KHz |
|
Microphone |
Electret type |
|
Operating Temperature Range |
-20°C to +50°C |
|
Input Voltage |
10.8 V DC |
|
Current Drain |
1.3A @ 5 watt |
|
Antenna impedance |
50 Ohms |
|
Size |
180 H x 67 W x 38 D (mm) |
|
Weight |
546 g |
|
Transmitter |
|
|
RF Power Output |
5W (HI) ; 1W (LO) |
|
Spurious and Harmonic Emission |
-60 dB |
|
Modulation |
16F3 |
|
Hum & Noise |
-40dB |
|
Frequency Stability |
+/- 5 ppm |
|
|
|
|
Receiver |
|
|
Sensitivity for -20dB Quieting |
0.35 uV |
|
Squelch Sensitivity |
0.25 uV |
|
Audio Power Output |
3W @ 10% distortion |
|
Spurious and Image Rejection |
-60dB |
|
Selectivity |
-60dB |
|
(Specifications
are subject to change without notice) |
